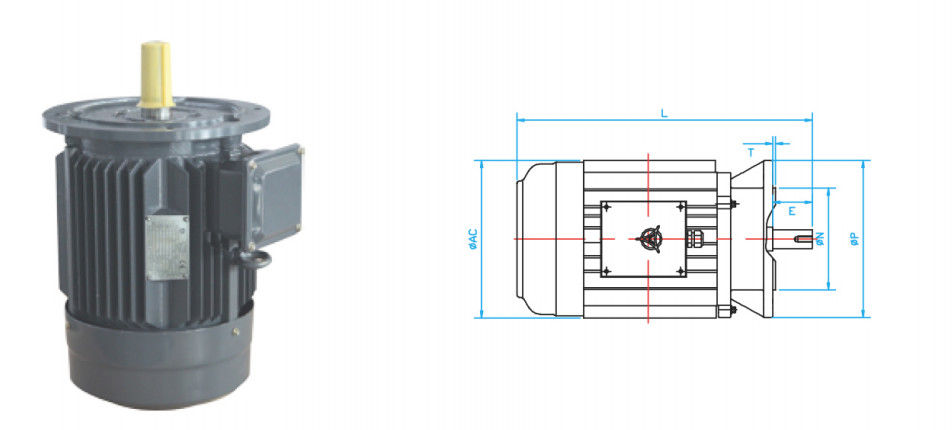

YE2 3 Phase Asynchronous Motor Cast Iron Horizontal Motor

YE2 cast iron horizontal motor series

 YE2 series motors (center high h63-355mm, 0.12kw-355kw) are fully enclosed.self-fan cooled squirrel cage rotor three-phase asynchronous motors. The productreached the international advanced level in the 1990s. lt is a replacement for the Yseries. Compared with the Y series, it improves the protection level (IP55).improves the insulation level (F), and performs the b-level temperature riseassessment (except ye3-315l2-2, grade 4 and ye3-355, so the specififications areassessed as f-level), reduces the noise, and USES the load noise assessment.The motor structure is more reasonable, and the appearance is novel and beautiful.The cooling mode of the motor is IC411. The mounting size and power level are inaccordance with IEC standard and DIN42673 standard. Motor is suitable for drivingall kinds of mechanical equipment without special requirements. YE3 series motorrated voltage of 380 v, rated frequency 50 hz, 3 kw, and the following for the Y con-nection, 4 kw and above for connection. Motor can also be designed accord ingto user needs, provide special voltage, frequency, outdoor and hot and humid motor-and other special purposes

Correspondence between frame number and speed and power

Design & Manufacture Catalogue

IEC High Effciency Motors
IEC Standard Motors
Air Compressor Motors
Water Pump Motors
Chemical Pump Motors
Inverter Duty Motors
Single Phase Motors
Anti Vibration Motors
Custom Motors

Application

environmental protection machinery, agricultural machinery, food machinery, cooling towers, reducers, linkage equipment, woodworking equipment, fans, etc.

Main Feature

High performance, high efficiency,small size,light weight

1, The multi-angle connection of the receiving box is convenient and practical
2, Lightweight aluminum alloy shell, effective heat dissipation, solid and durable
3. High-performance bearings ensure wear resistance of key components
4, Excellent rotor processing technology, and immersed in special materials, long life
5. Improve the insulation performance and improve the service life of the motor. During the whole service life, the bearing maintains its best performance. Users recognize that our company's motor structure is the most reliable product. After long-term research and practice, we design and produce high Efficiency motor, high strength, low vibration.
6. The low-noise and high-efficiency fan provides the maximum cooling effect. The ventilation system and the low-noise and high-efficiency fan are developed by using CAE (computer-aided software). Through the effective use

 A complete collection of products

Cooling tower motor
Aluminum shell standard motor
Steel shell washing equipment motor
Aluminum shell reducer motor
Food Oven Motor
Environmental protection water pump motor
Environmental protection fan motor
Non-standard custom motor
Non-standard custom oil pump double output shaft motor
Efficient standard motor
Mining oil field motor
