Highlight:
                                                                                                                                                                                                                                                                                                                                                motor iec 60034 1, motor iec 34 1, iec 112 motor


Name:	Iec Motor	Frame Size:	80~355l
Output Power:	0.75 To 355kw	Rated Voltage:	380v Or Other Voltage
Rated Frequency:	50hz Or 60hz	Working System:	Continuous Working System S1
Protection Level:	Ip55	Cooling Mode:	Ic411
Insulation Class:	Class F Insulation/Class H Insulation

Name:	Iec Motor
Frame Size:	80~355l
Output Power:	0.75 To 355kw
Rated Voltage:	380v Or Other Voltage
Rated Frequency:	50hz Or 60hz
Working System:	Continuous Working System S1
Protection Level:	Ip55
Cooling Mode:	Ic411
Insulation Class:	Class F Insulation/Class H Insulation

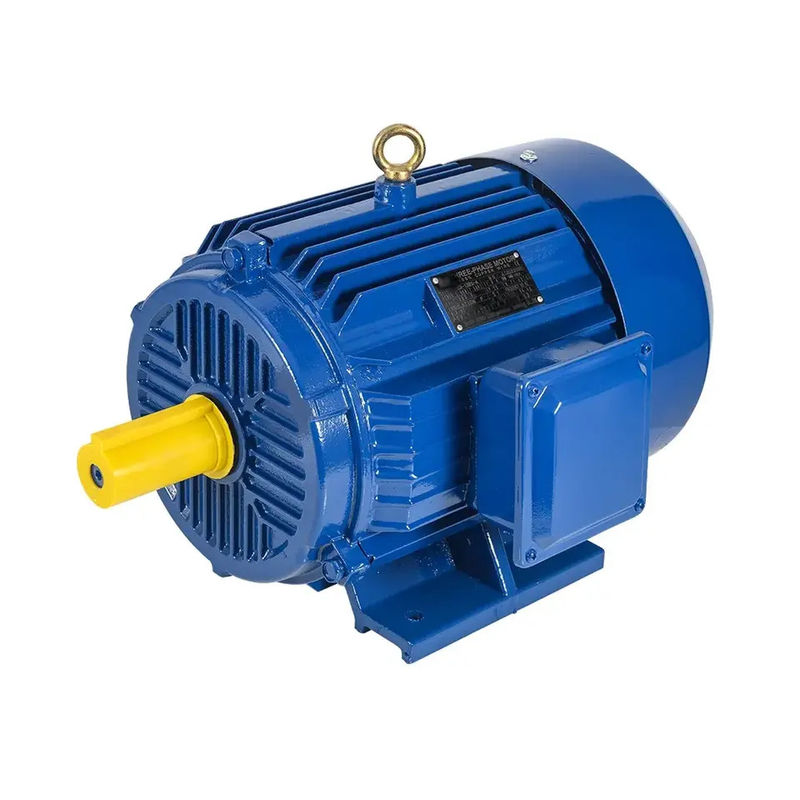

Iec 112 Motor IEC Standard Motors Iec 60034 1

Super Premium Efficiency Motor YE4 Series

Name	IEC motor
Frame size	80~355L
Output power	0.75 to 355kW
Rated voltage	380V or other voltage
Rated frequency	50HZ or 60Hz
Working system	Continuous working system S1
Protection level	IP55
Cooling mode	IC411
Insulation class	F insulation /H insulation
Installation	IMB3 (horizontal foot mount); IMB5 (horizontal large flange installation); IMB35 (horizontal foot mount with large flange); And other installation dimensions, refer to the attached table.
Design basis	IEC60034; Chinese National Standard GB755-2019
Energy efficiency grade	in line with the Chinese national standard GB18613-2020 energy efficiency requirements
