Highlight:
                                                                                                                                                                                                                                                                                                                                                inverter duty induction motor, induction motor 3 Phase, Inverter Duty Motors


Name:	Inverter Motor	Frame Size:	56~160L
Output Power:	0.09~15kW	Rated Voltage:	380V Or Other Voltages
Rated Frequency:	50Hz Or 60Hz	Working System:	Continuous Working System S1
Protection Level:	IP55	Cooling Mode:	IC416
Insulation Grade:	F Insulation/H Insulation

Name:	Inverter Motor
Frame Size:	56~160L
Output Power:	0.09~15kW
Rated Voltage:	380V Or Other Voltages
Rated Frequency:	50Hz Or 60Hz
Working System:	Continuous Working System S1
Protection Level:	IP55
Cooling Mode:	IC416
Insulation Grade:	F Insulation/H Insulation

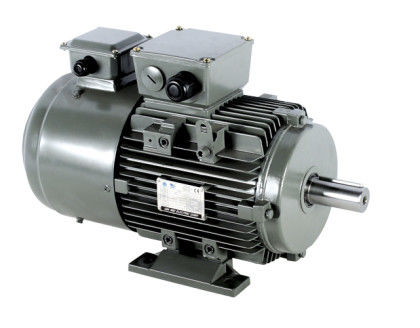

Inverter Duty Induction Motor 3 Phase Aluminum

Three Phase Induction Adjustable Frequency Electric Aluminum Motor

Name	NEMA motor
Frame No	56~160L
Output power	0.09~15kW
Rated voltage	380V or other voltages
Rated frequency	50Hz or 60Hz
Working system	Continuous working system S1
Protection grade	IP55
Cooling mode	IC416
Insulation grade	F insulation/H insulation
Installation mode	IMB3 (horizontal footrest installation); IMB5 (horizontal large flange installation); IMB35 (horizontal foot mounting with large flange); IMB34 (horizontal foot mounting with small flange); And other installation dimensions, refer to the attached table.
Design basis	IEC60034; Chinese National Standard GB755
Energy efficiency grade	in line with the Chinese national standard GB18613-2020 energy efficiency. The frequency beyond 50H is not within the scope of national energy efficiency certification, and the characteristics and characteristics are different. The GB characteristics shall prevail in this table.
